Heating Elements
HORST GmbH HBS 1,5m
SKU: 61003
In Stock
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

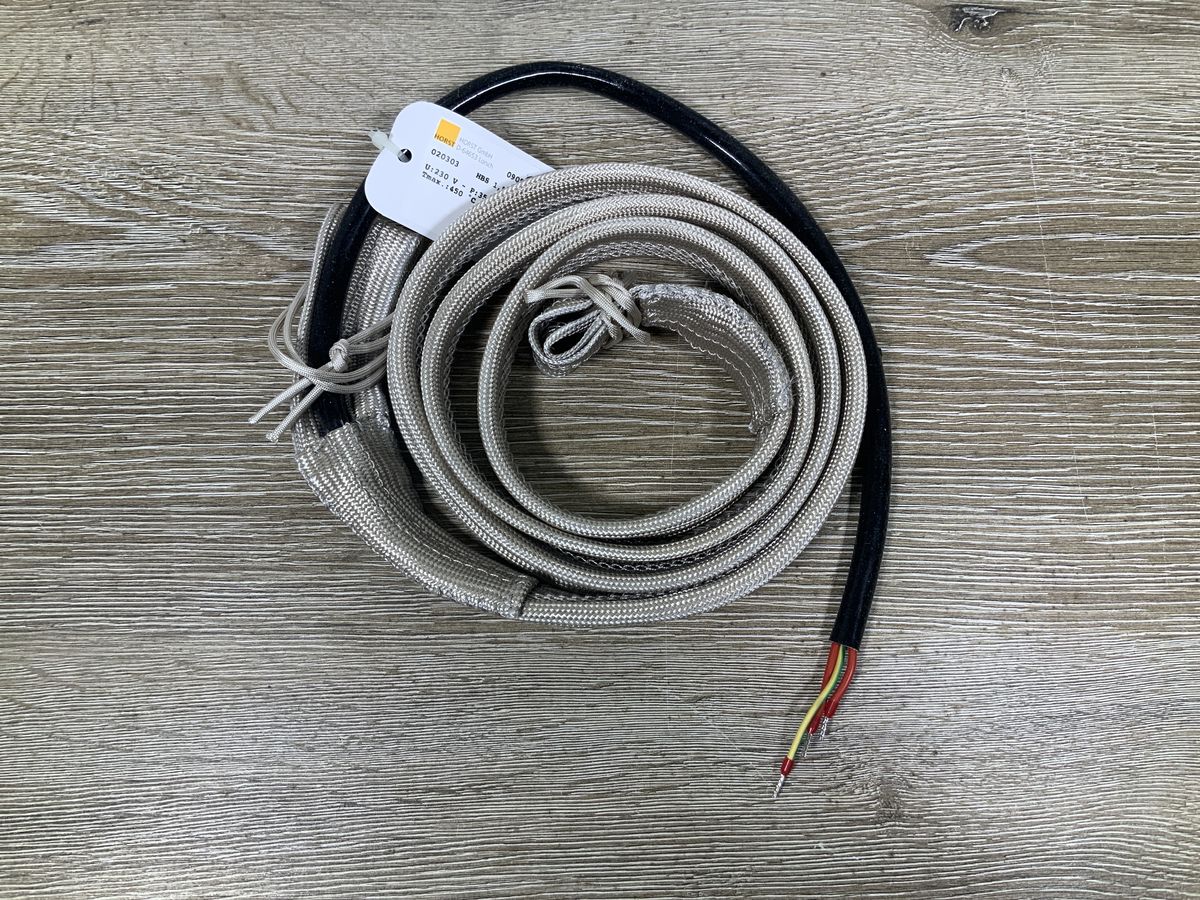

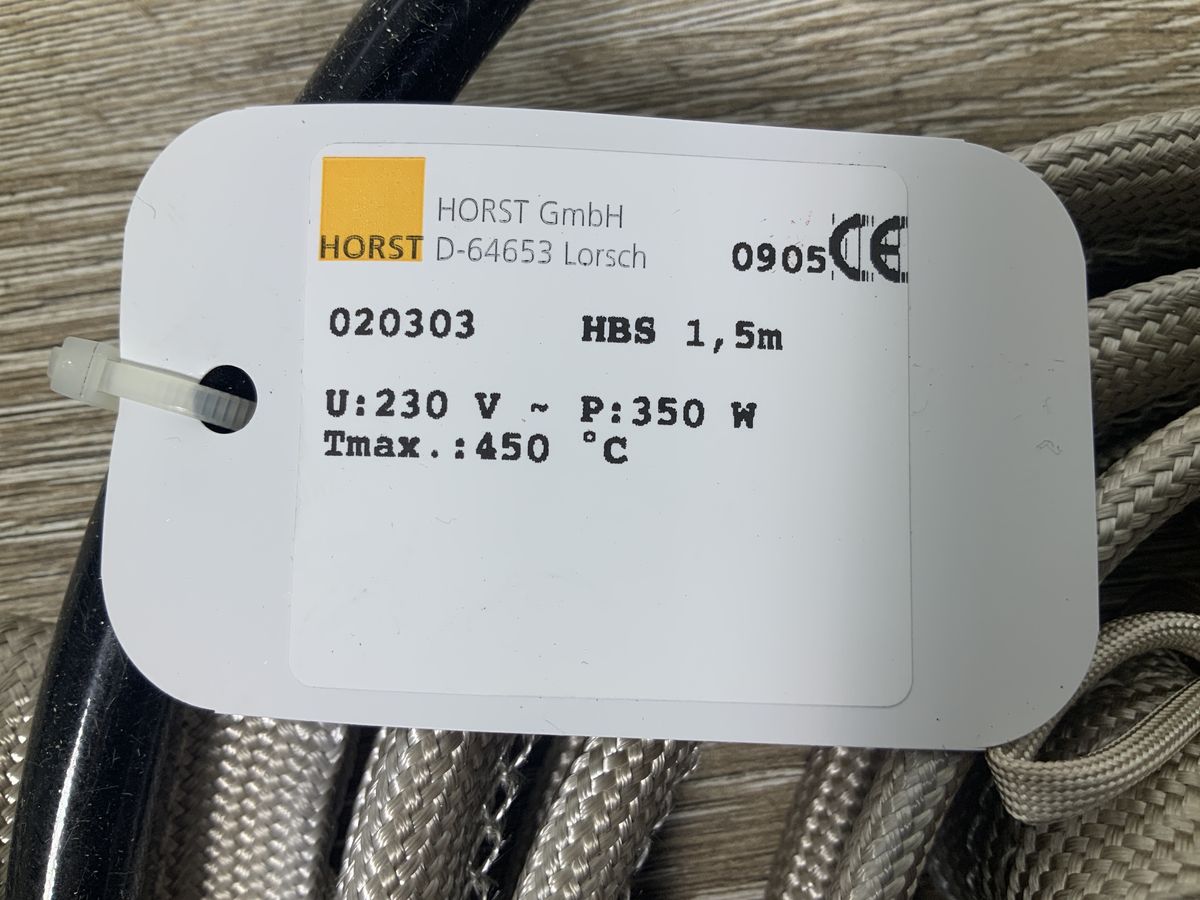

The HORST HBS 1,5m is a flexible heating tape designed for high-temperature thermal applications up to 450 °C. It features multi-layer glass yarn insulation with a protective metallic braid connected to the protective earth conductor. Operating at 230 V, it provides a heating power of 350 W over its 1.5-meter length.
Specifications – HBS 1,5m
| Parameter | Specification |
|---|---|
| Voltage | 230 V ~ |
| Power | 350 W |
| Max Temperature | 450 °C |
| Length | 1.5 m |
| Product Name | HBS - 450 °C/350 °C - Smooth Heating Tape with Protective Braid (datasheet) |
| Order Number | 020303 (datasheet) |
| Nominal Temperature | 450 °C (datasheet) |
| Nominal Voltage | 230 V~ (datasheet) |
| Connection Cable Length | 0.5 m (datasheet) |
| Thickness | 5.5 mm (datasheet) |
| Breadth | 30 mm (datasheet) |
| Min. Bending Radius | 10 mm (datasheet) |
| Protective Braid Material | nickel (datasheet) |
| Humidity Protection | not humidity-proof (datasheet) |
| Included Connection Box | VTH (datasheet) |
×
![]()
