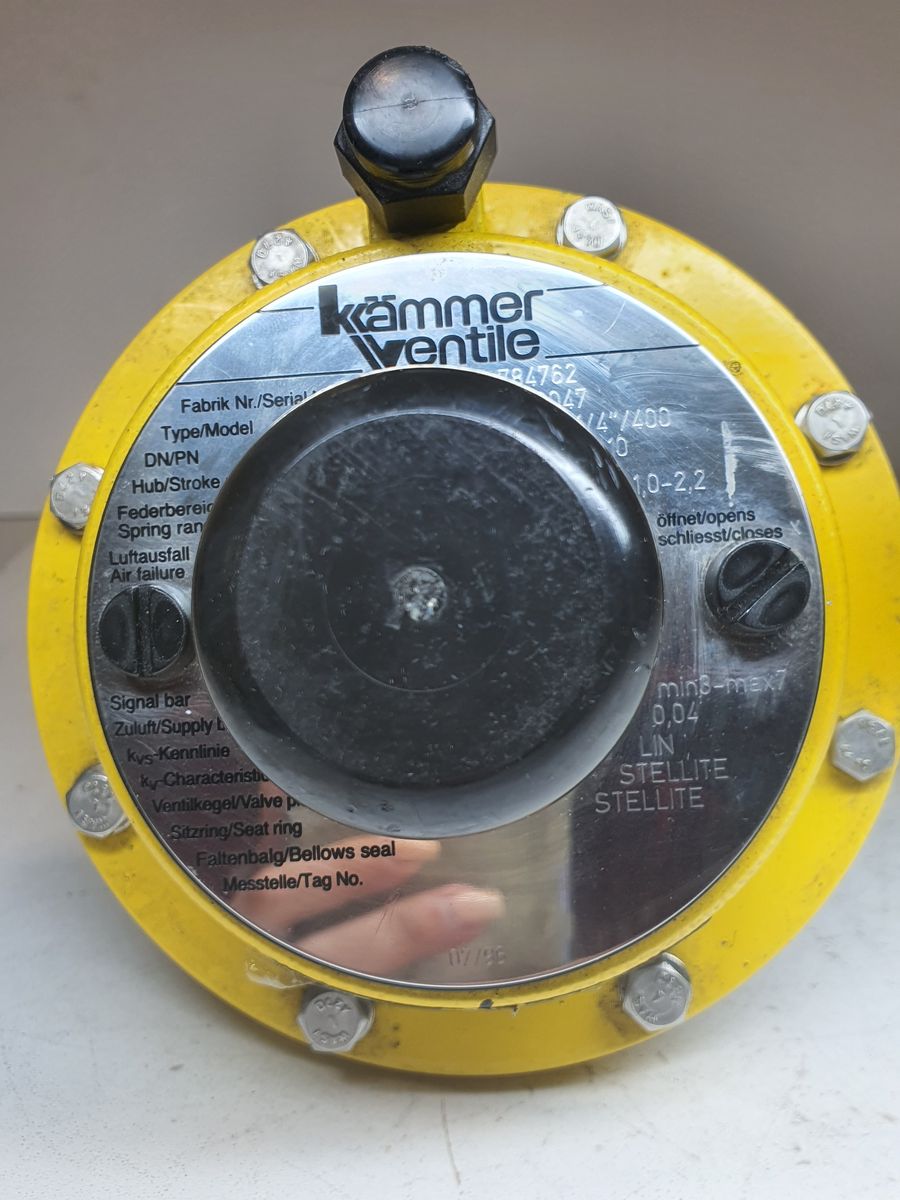

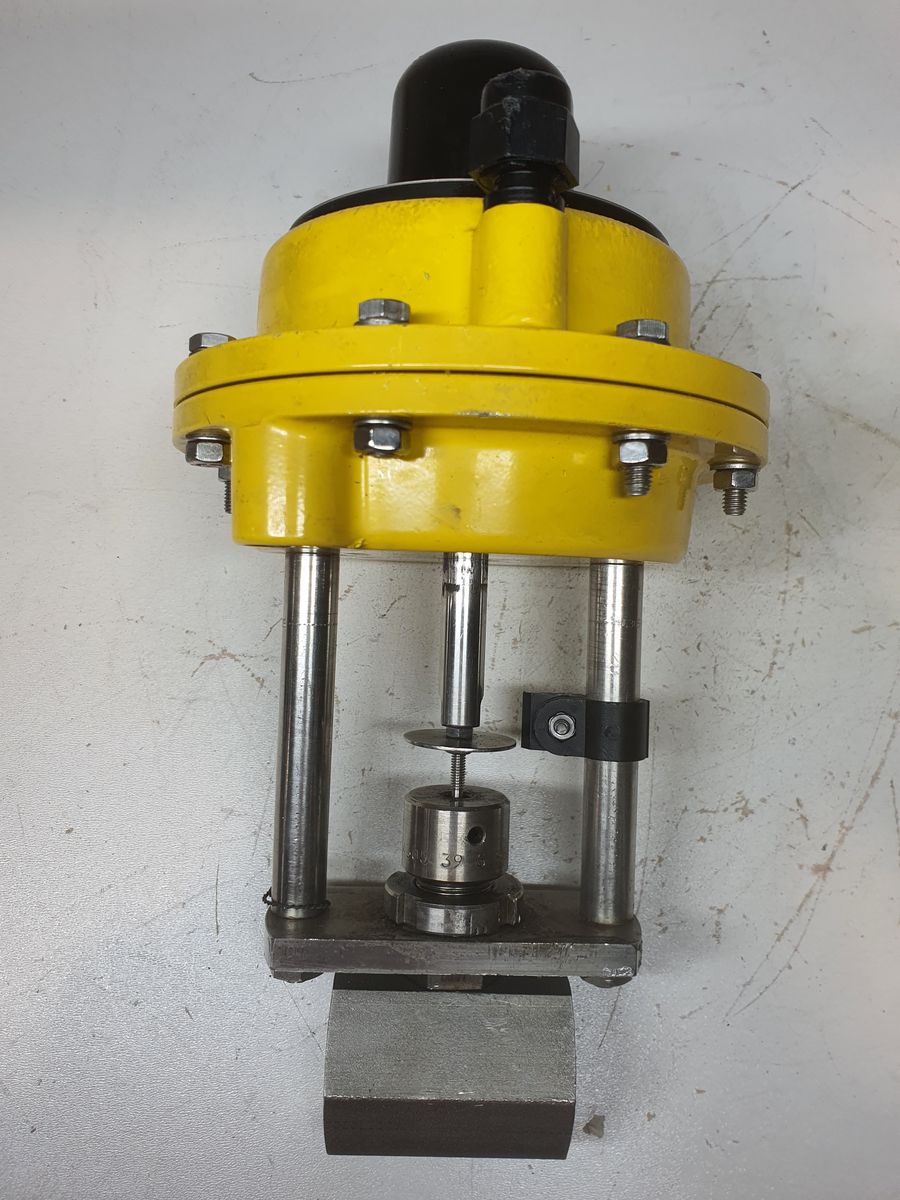

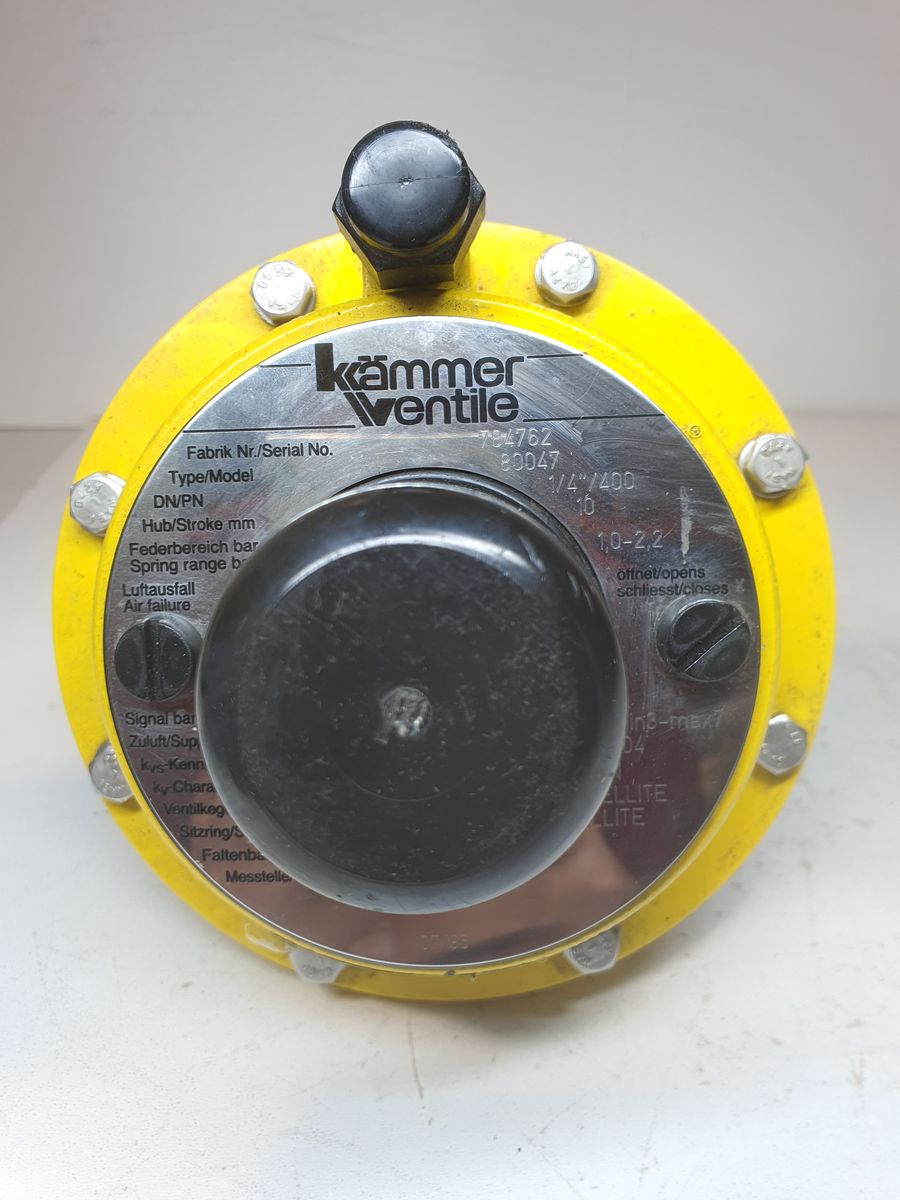

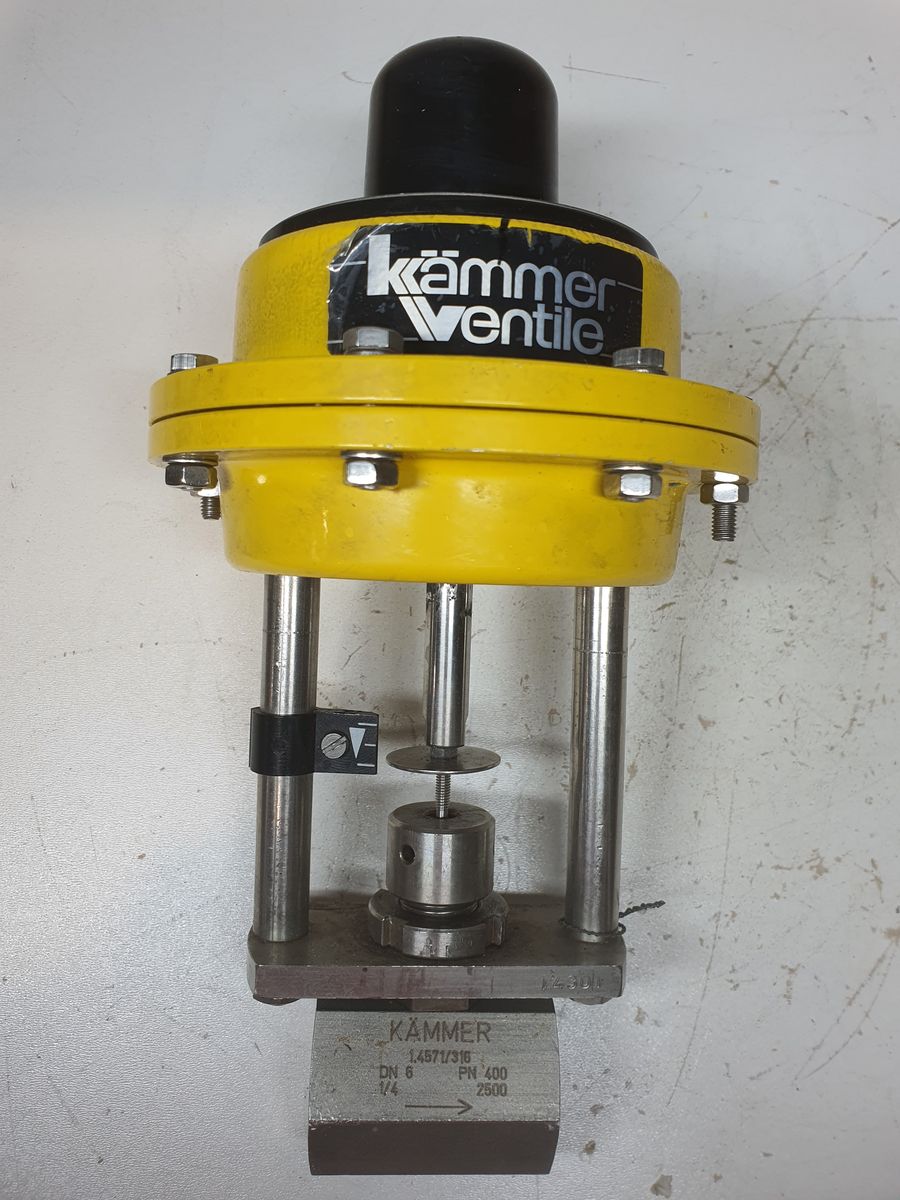

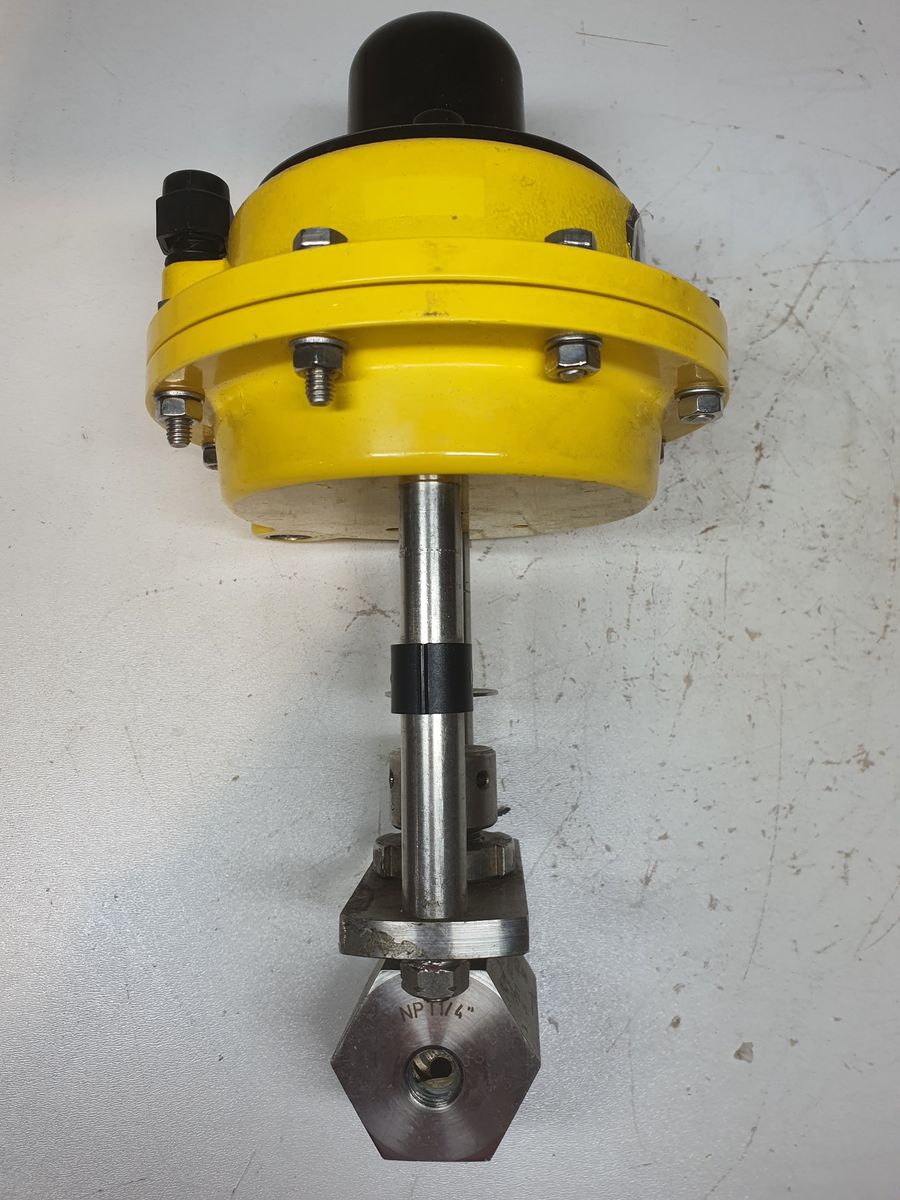

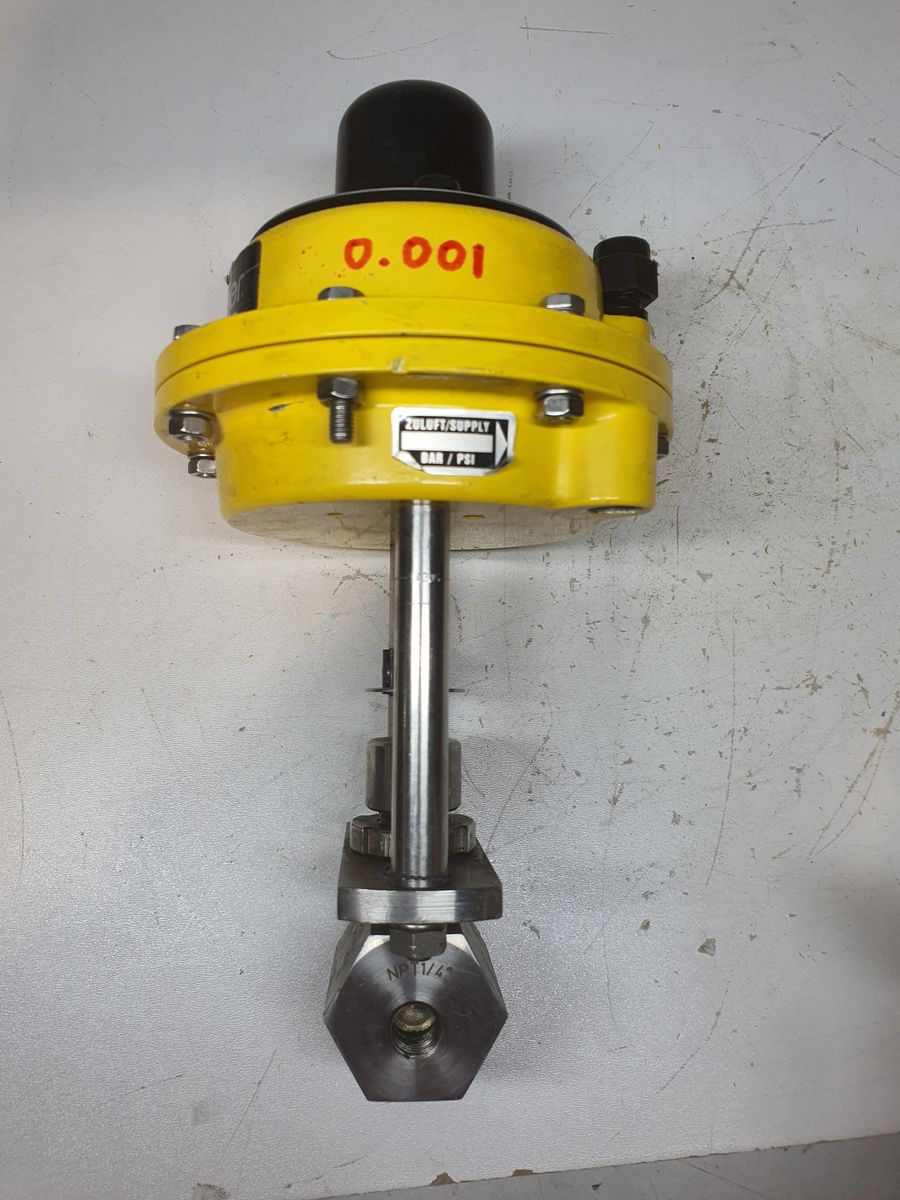

Control Valve by Kammer Ventile

Parameter	Specification
Manufacturer	Kämmer Ventile
Model	80047
Valve Type	Control Valve (Micro-flow / Globe type)
Nominal Size	1/4" (DN 8 approx.)
Pressure Rating	PN 400
Stroke	10 mm
Control Signal	Pneumatic: 3 – 7 bar
Actuation Type	Pneumatic (direct signal, no I/P required)
Supply Pressure	0.04 bar (likely instrument air reference; verify)
Spring Range	1.0 – 2.2 bar
Flow Characteristic	Linear (LIN)
Flow Coefficient (Kv)	Not specified (micro-flow typical)
Valve Plug Material	Stellite (Alloy 6)
Seat Ring Material	Stellite (Alloy 6)
Trim Type	Hardened trim (plug + seat)
Service Type	High-pressure, low-flow / severe service
Typical Applications	Chemical dosing, high ΔP control, sampling
