Phoenix Contact QUINT-UPS/24DC/24DC/20

SKU: 7019

In Stock

Used

Excl. VAT: €100.00 (1 available)

Incl. VAT: €121.00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 6 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

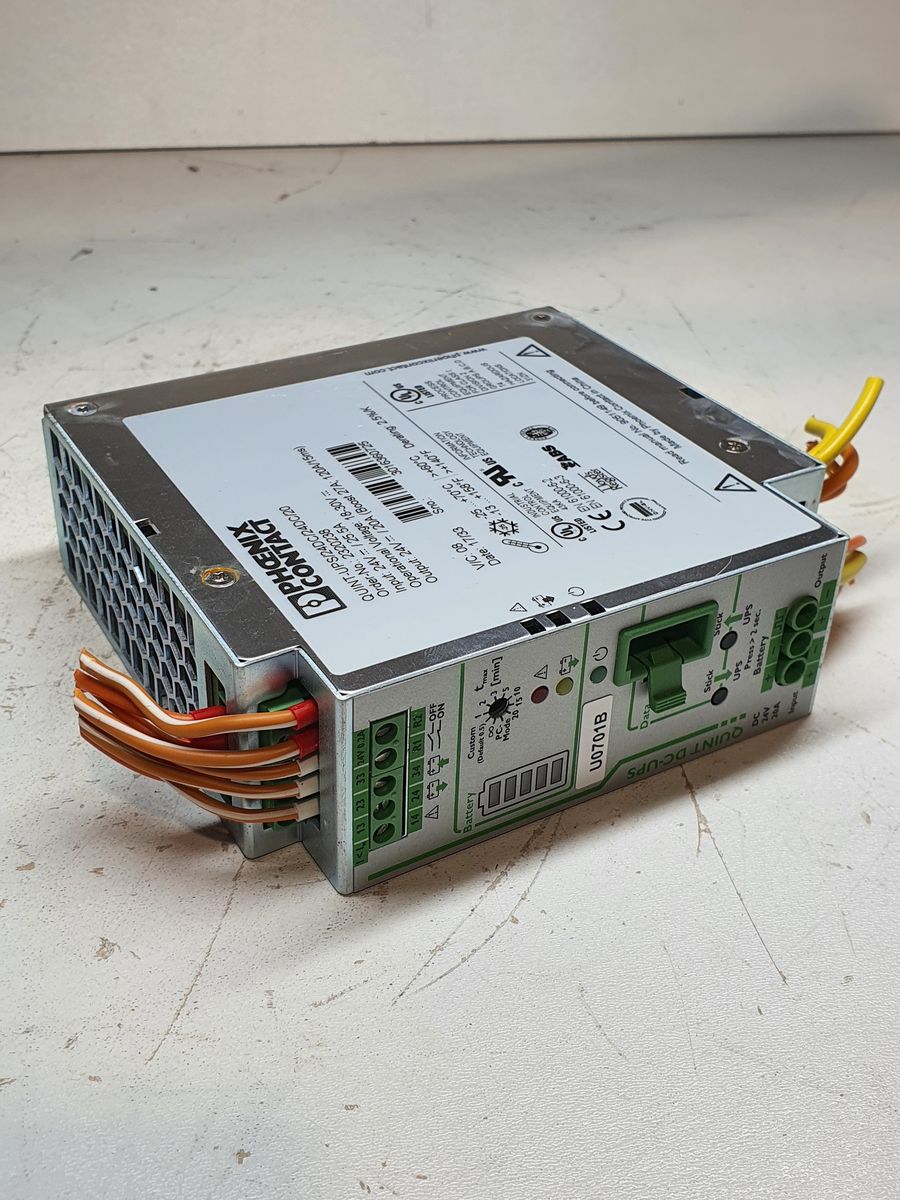

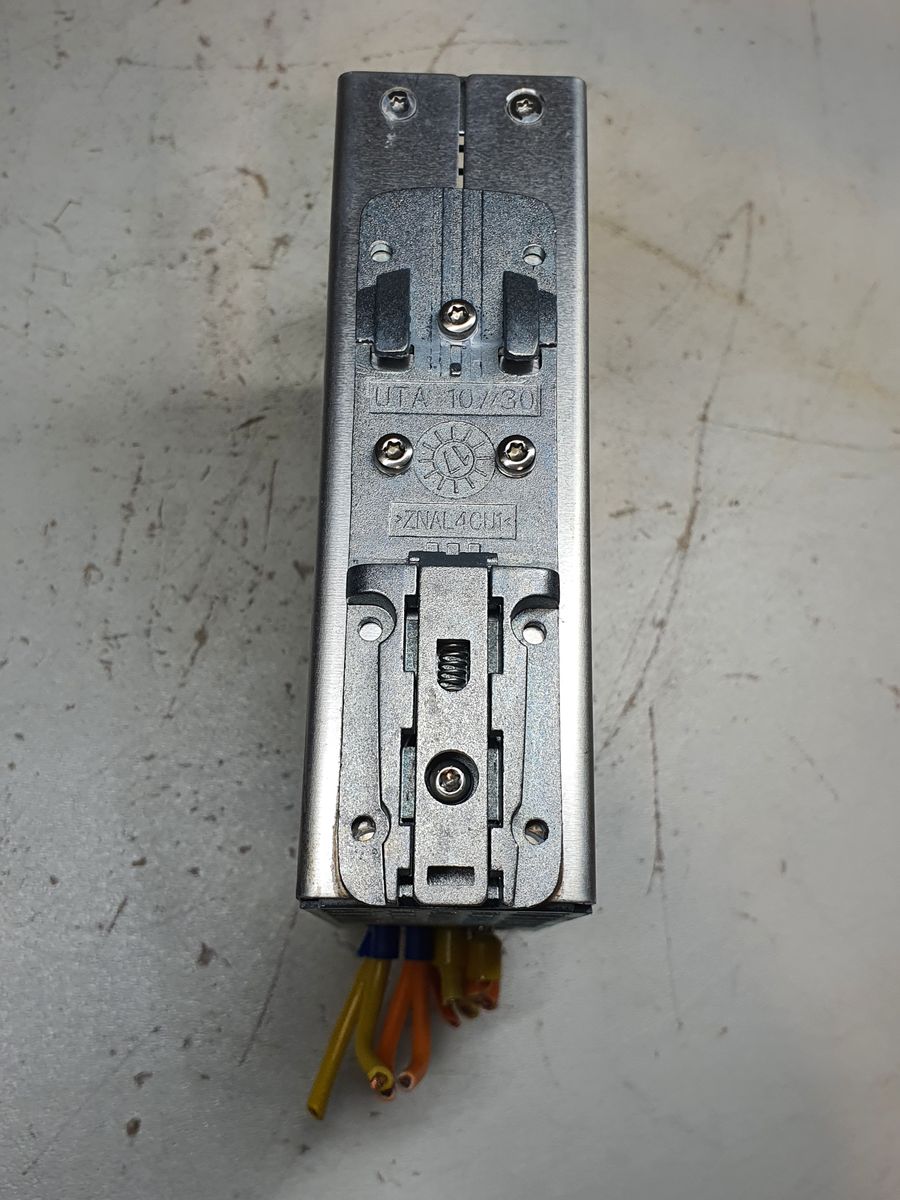

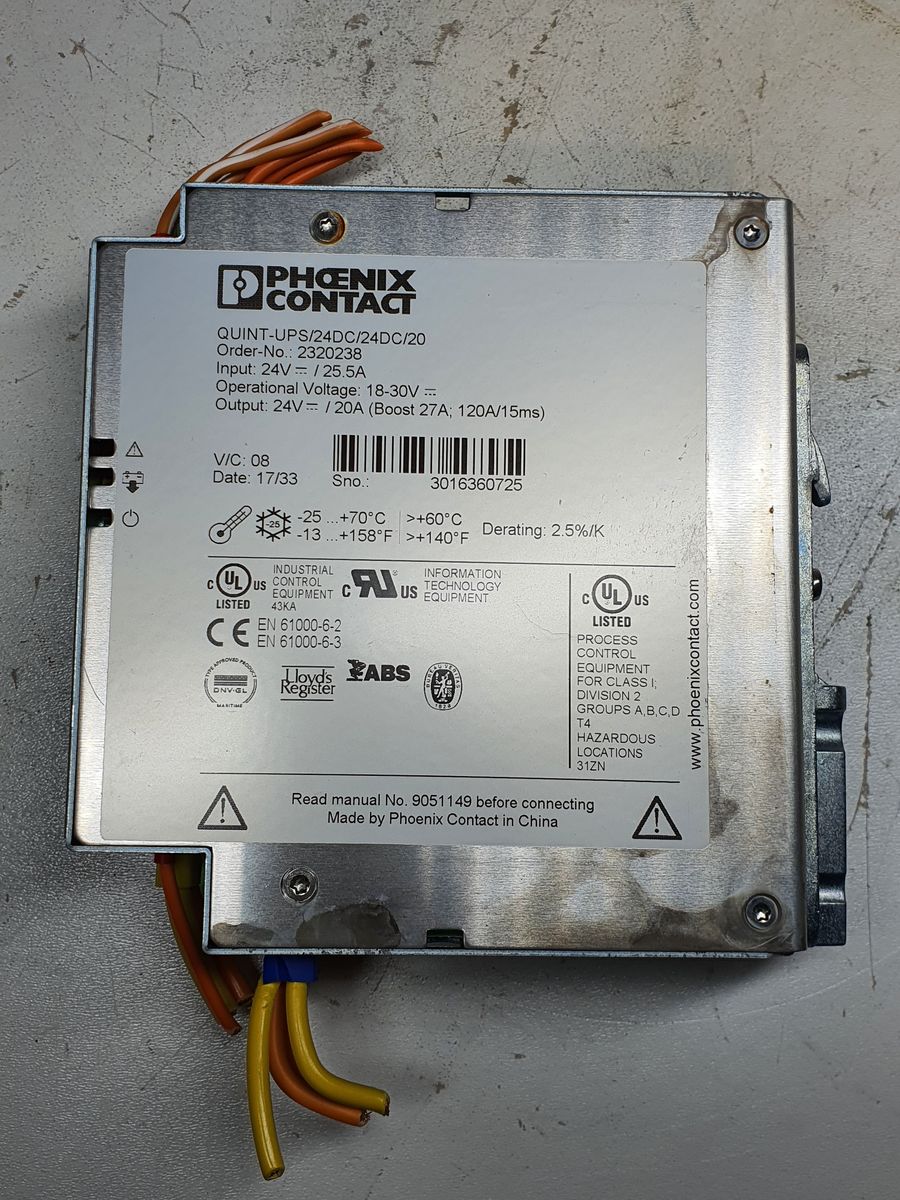

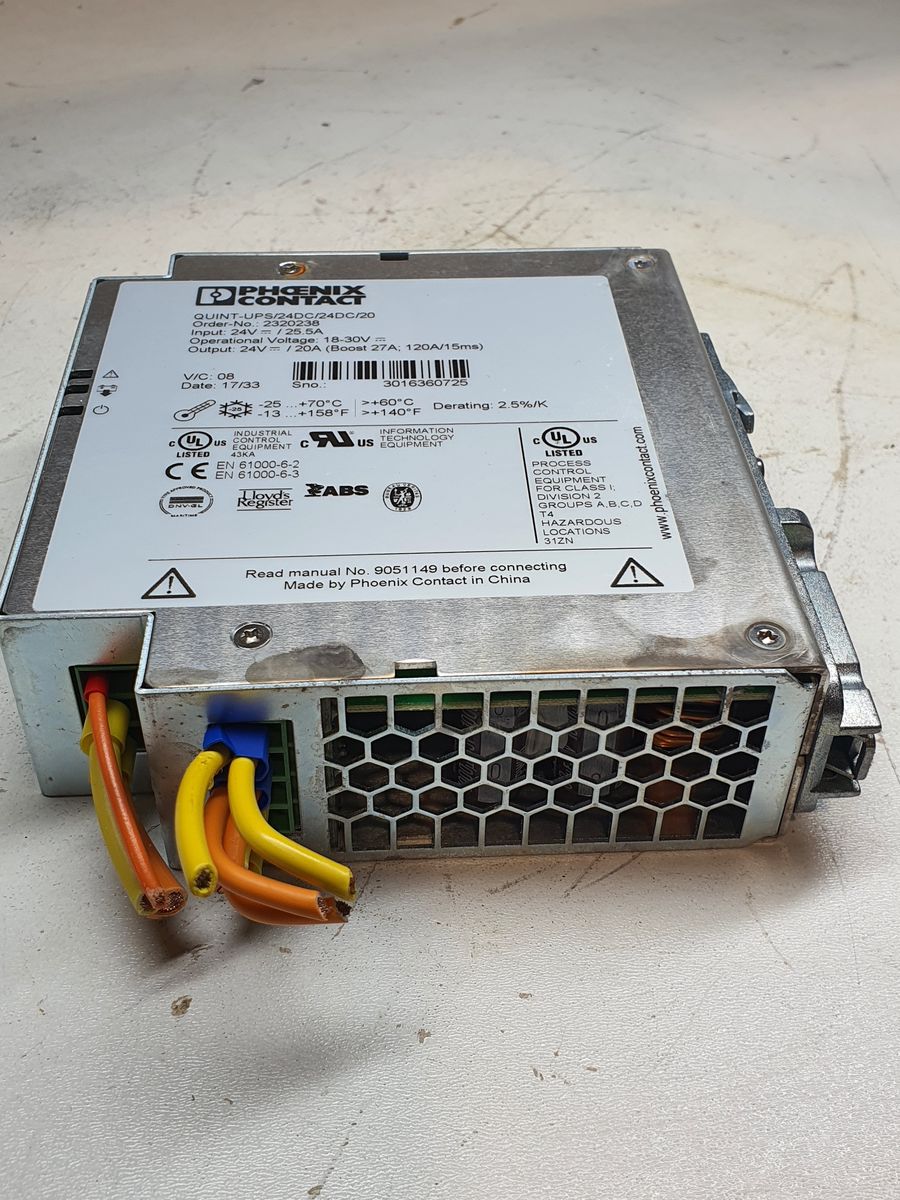

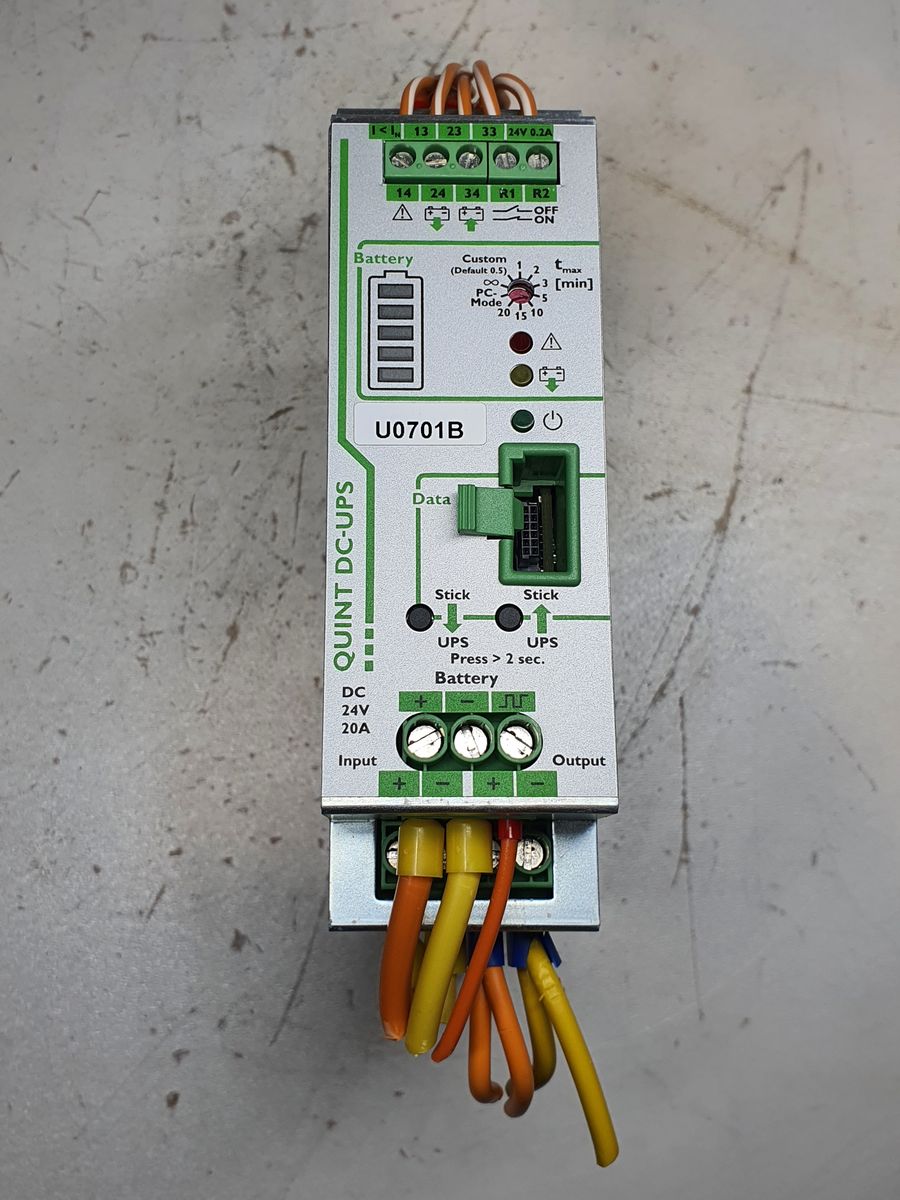

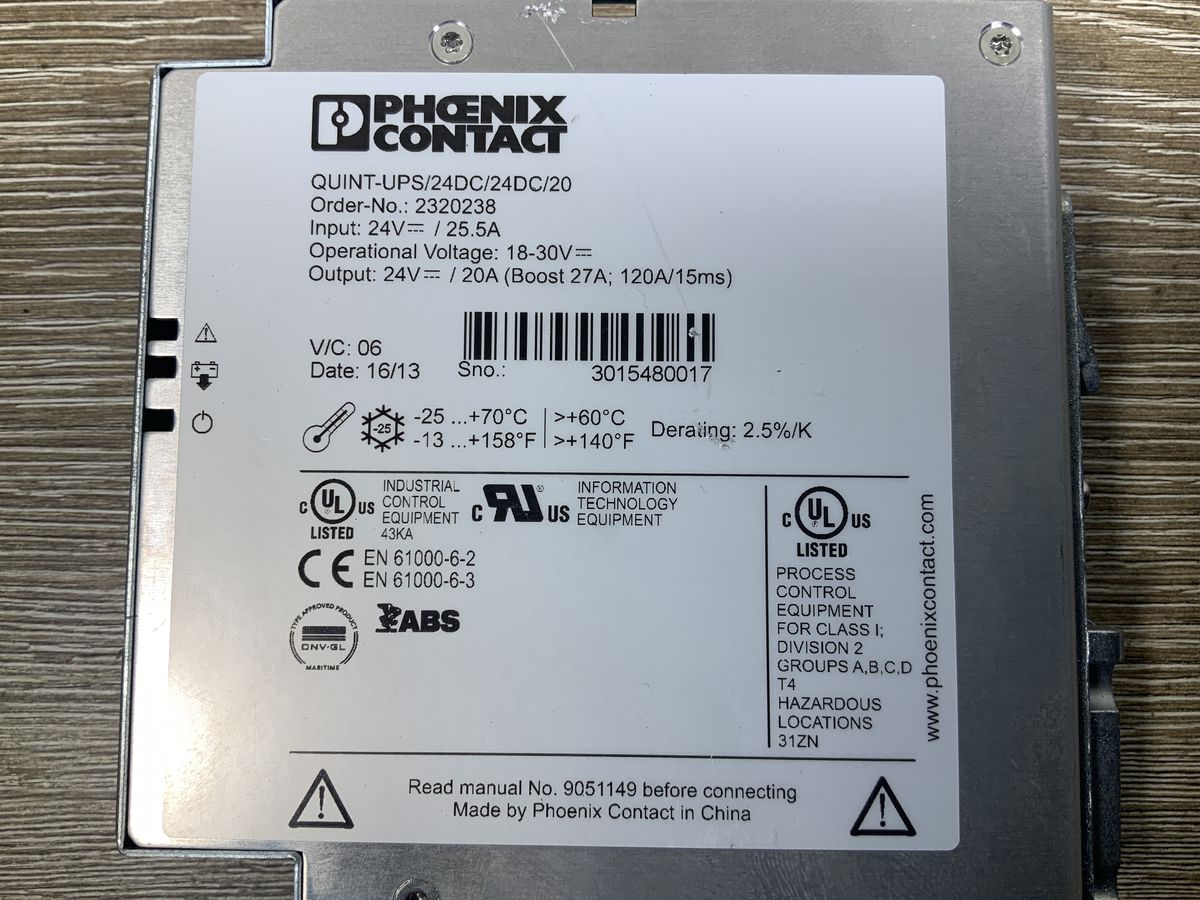

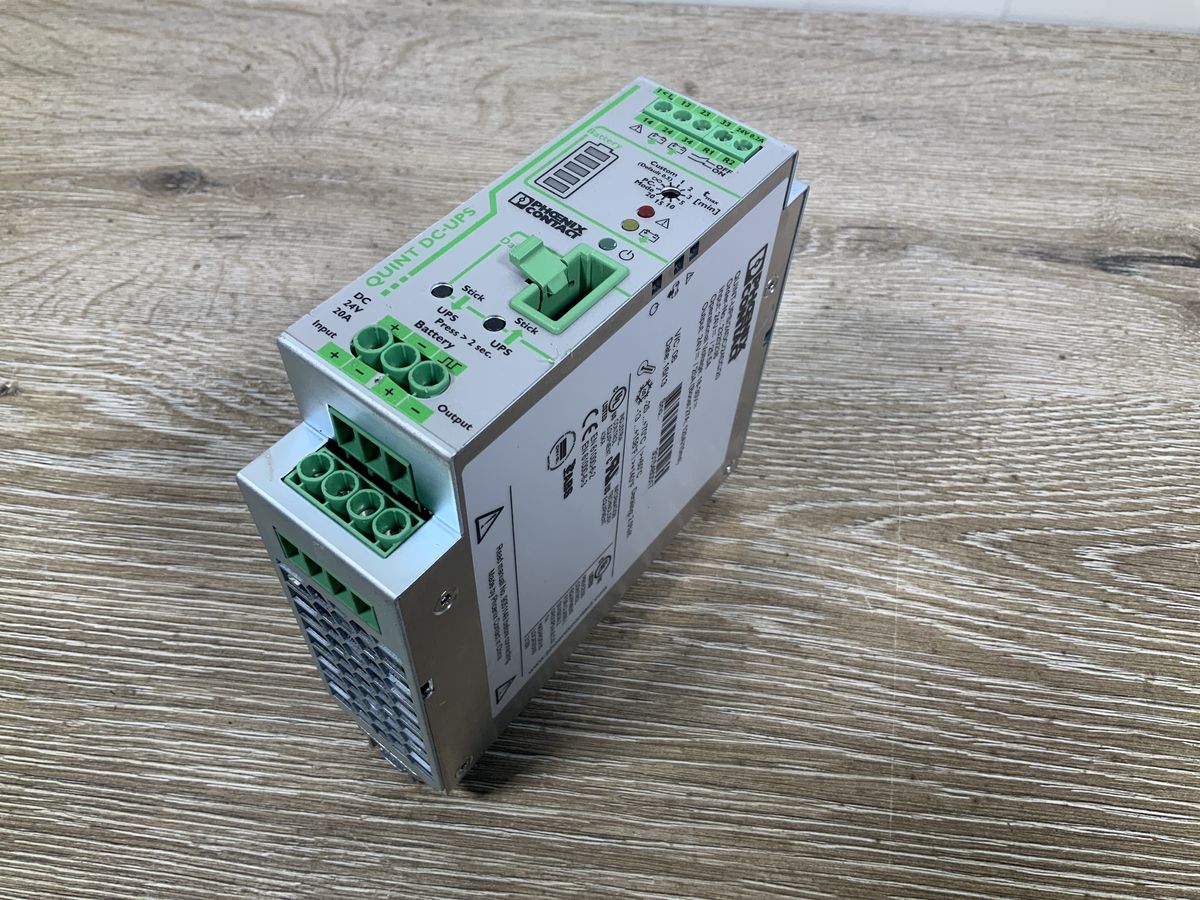

Phoenix Contact QUINT-UPS/24DC/24DC/20 - 3016360725

Specifications

Parameter	Specification
Input Voltage	24 V DC
Input Voltage Range	18 … 30 V DC
Typical Country Mains Voltage	24 V DC
Max. Tension Strength	35 V DC (polarized)
Supply Voltage Type	DC
Internal Input Fuse	No
Inrush Current	≤ 8 A (≤ 4 ms)
Polarity Protection	Yes
Fixed Activation Threshold	22 V DC / 30 V DC
Dynamic Activation Threshold	> 1 V / 100 ms
Switch-On Time	Max. 3 s
Switch-On Time (Battery Mode)	8 s
Input / Output Voltage Drop	0.4 V DC
Output Voltage	24 V DC (UOUT = UIN − 0.4 V DC)
Output Voltage Range	18 … 30 V DC (UOUT = UIN − 0.4 V DC)
Output Voltage Range (Extended)	18 … 32 V DC
Output Current (IN)	20 A
Static Boost Current	25 A
Dynamic Boost Current	30 A (5 s)
Selective Fuse Breaking (ISFB)	120 A (15 ms)
Current Consumption (IN)	20.1 A
Current Consumption (Max)	31.4 A
Current Consumption (No-Load)	50 mA
Charging Current (Max)	6.1 A
Power Consumption (PN)	474 W
Power Consumption (Max)	738 W
Power Consumption (No-Load)	1.3 W
Power Consumption (Charging)	145 W
Output Power (Nominal)	480 W
Output Power (Static Boost)	600 W
Output Power (Dynamic Boost)	720 W (5 s)
Power Dissipation (No-Load)	3 W
Power Dissipation (Nominal Load)	10 W
Width	40 mm
Height	130 mm
Depth	132 mm
Device Depth (Rail Mounting)	125 mm
