Contrast Sensors

SICK KT5W-2P1116D

SKU: 40001

In Stock

Select Condition

Used

Excl. VAT: €180.00 (1 available)

Incl. VAT: €217.80

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Warranty Information

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 6 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Description

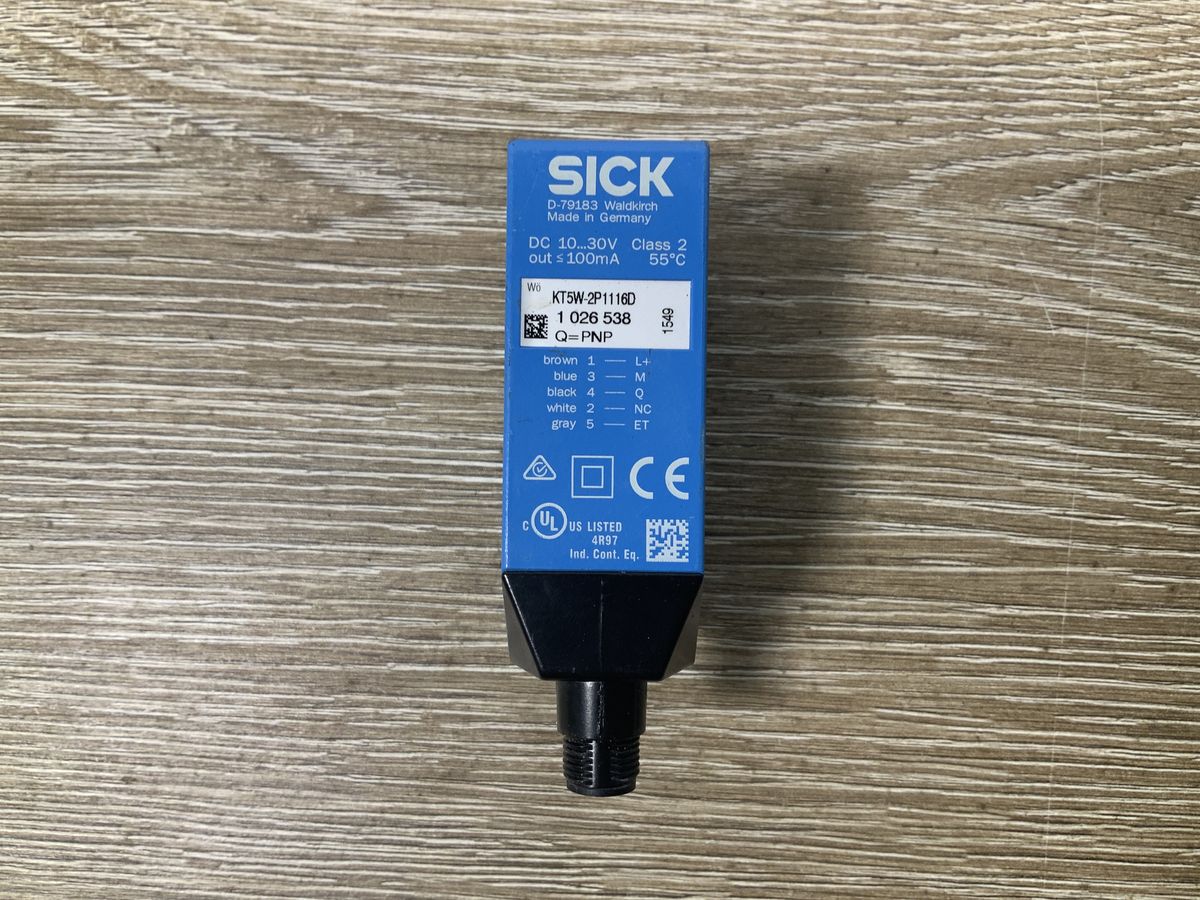

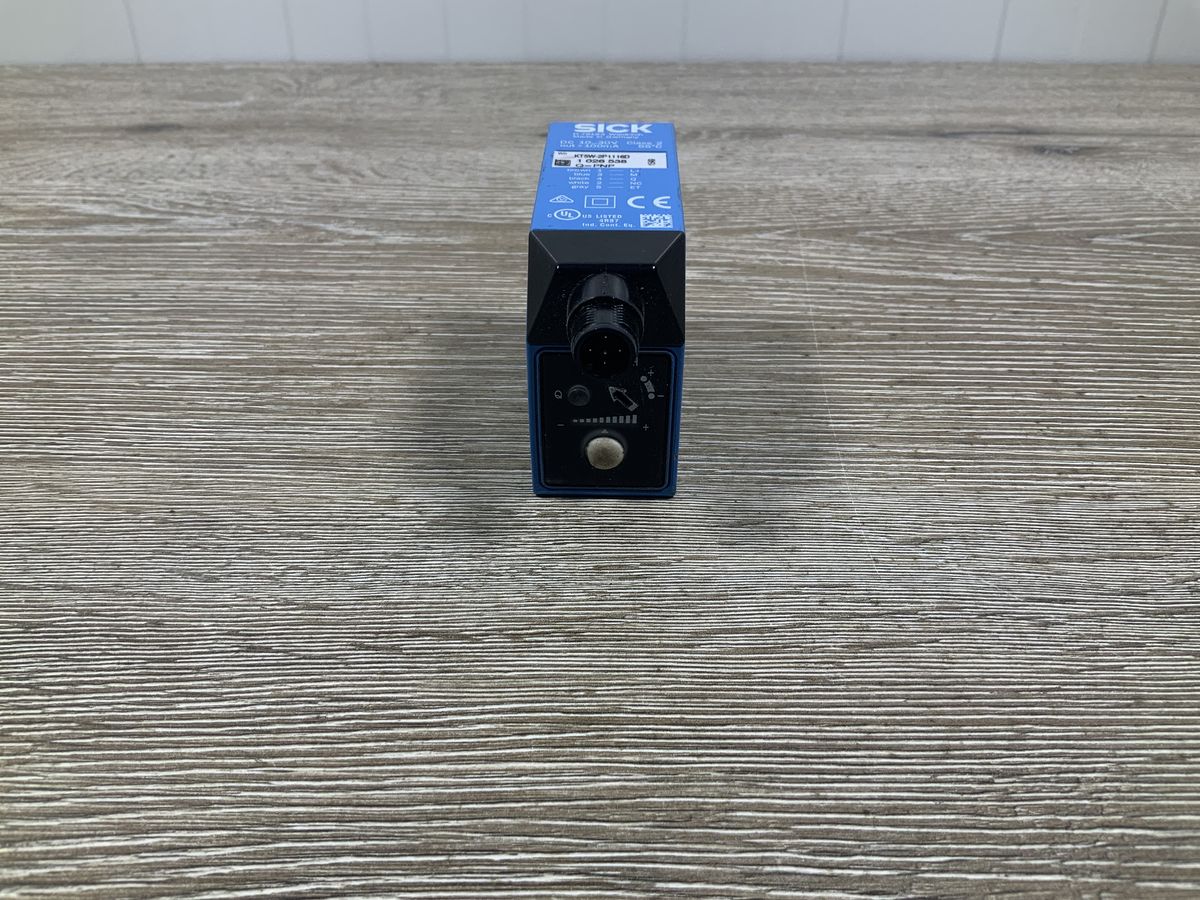

The SICK KT5W-2P1116D (part number 1 026 538) is an industrial photoelectric contrast sensor designed for precise registration mark and contrast detection. Operating on a 10 to 30 V DC supply, it features RGB LED light source technology, a 10 mm sensing distance, and a PNP switching output. It is equipped with a standard 5-pin M12 connector and a 2-point teach-in adjustment interface.

Specifications – KT5W-2P1116D

Parameter	Specification
Part Number	1 026 538
Supply Voltage	10...30 V DC
Output Current	≤ 100 mA
Max. Temperature	55 °C
Output Type	PNP
Connector Type	M12 5-pin
