Valves

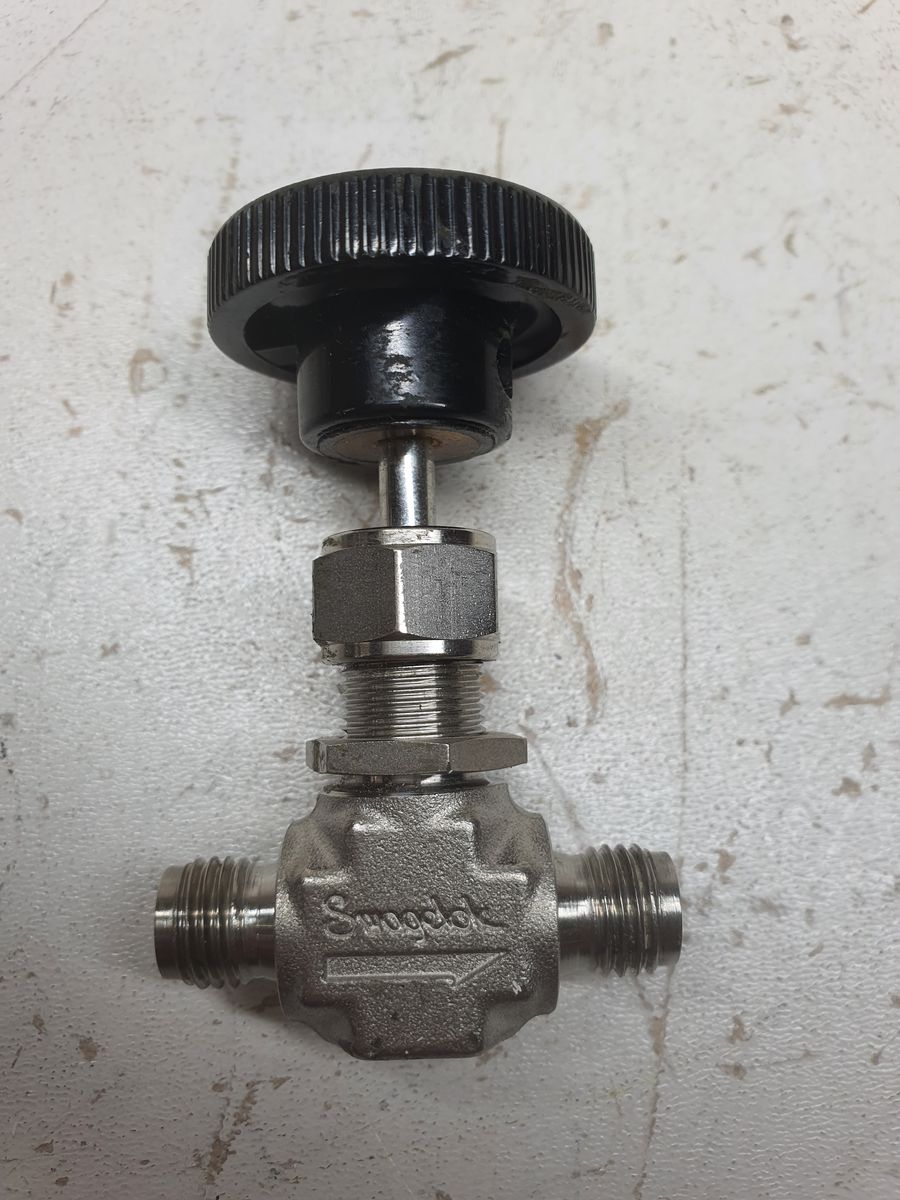

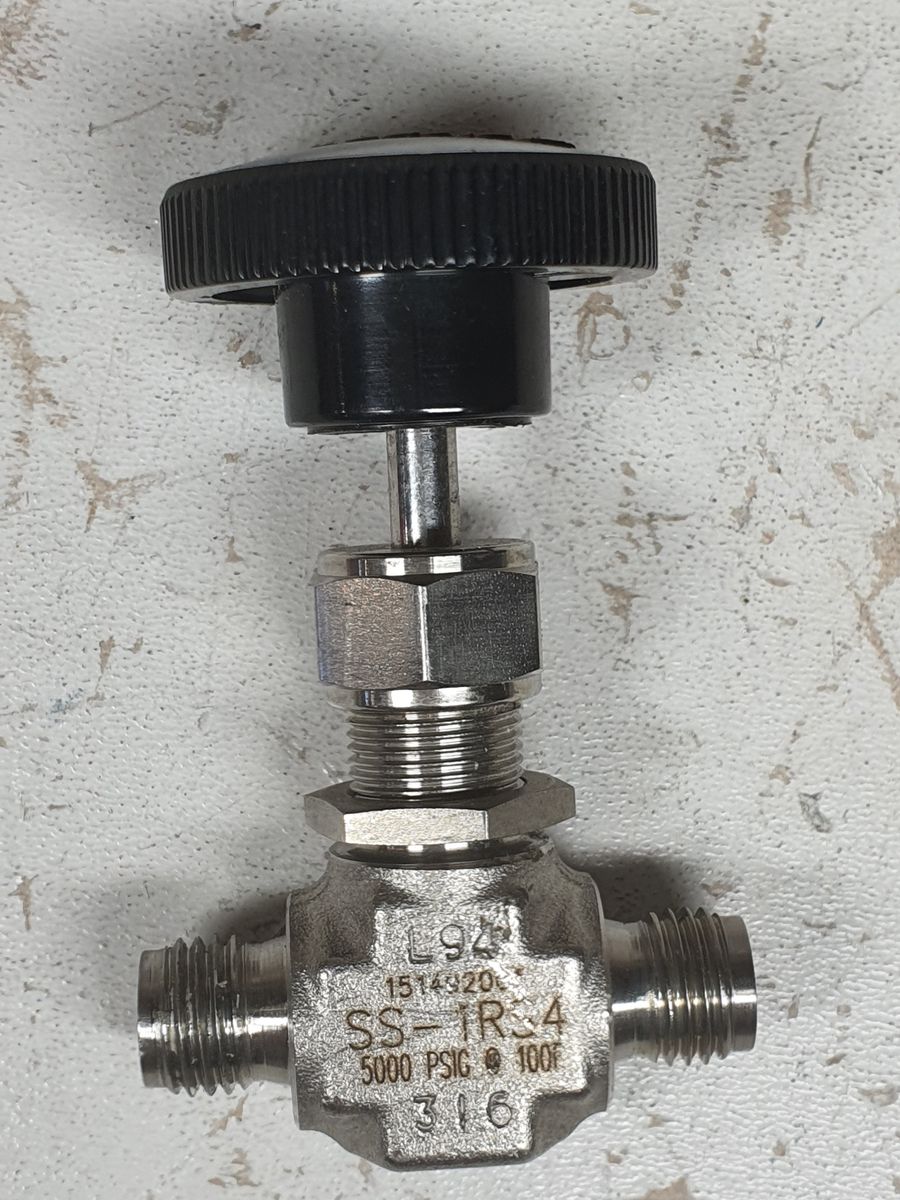

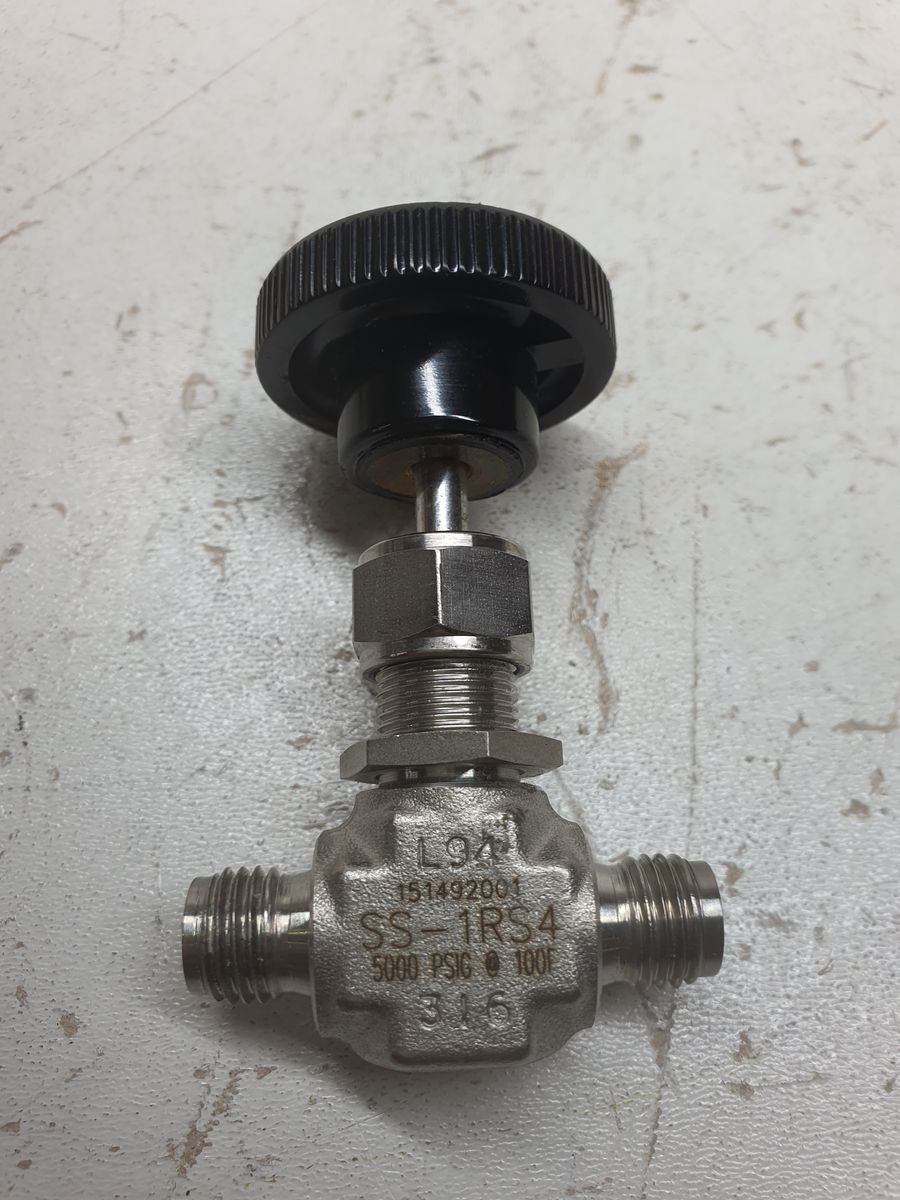

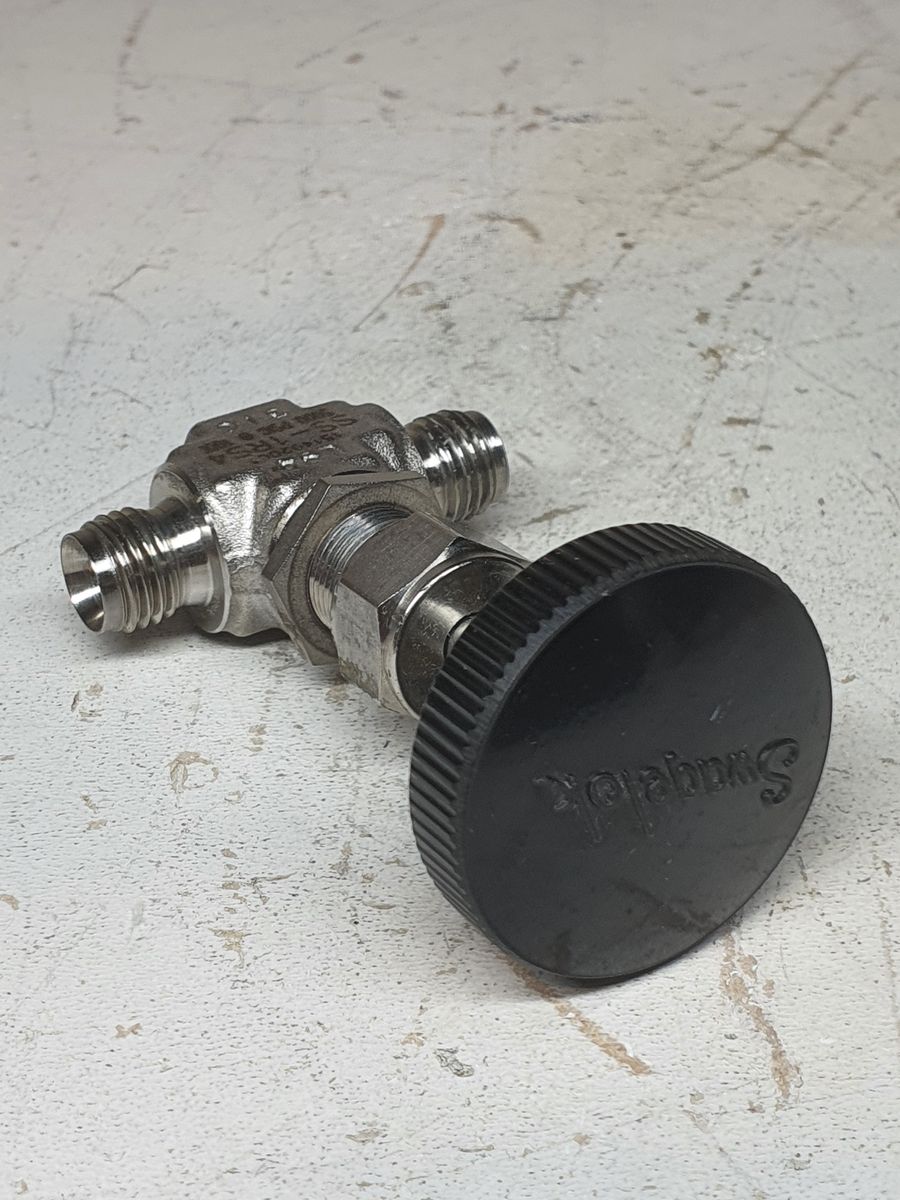

Swagelok SS-1RS4

SKU: 2018

In Stock

Used
Sourced from working environment

Excl. VAT: €40.00 (1 available)

Incl. VAT: €48.40

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 3 months

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications

Attribute	Value
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Tube Fitting
CV Maximum	0.37
Flow Pattern	Straight (2-way)
Handle Style	Phenolic Knob
Low Emissions Certified	Yes
Maximum Temperature, °F (°C)	450 (232)
Max Temperature Pressure Rating	600°F @ 3130 PSIG /315°C @ 215 BAR
Minimum Temperature, °F (°C)	-65 (-53)
Orifice	0.172 in
Room Temperature Pressure Rating	5000 PSIG @ 100°F /344 BAR @ 37°C
Stem Tip Material	316 Stainless Steel
Stem Type	Regulating
