LGW 3 A2
Switches

Dungs LGW 3 A2

SKU: 22002
In Stock

Select Condition

Condition
Price
Quantity
Action
Used
Excl. VAT: €35.00 (2 available)
Incl. VAT: €42.35
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Warranty Information

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Warranty Periods by Condition
New 12 months
Refurbished 6 months
Used 3 months
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

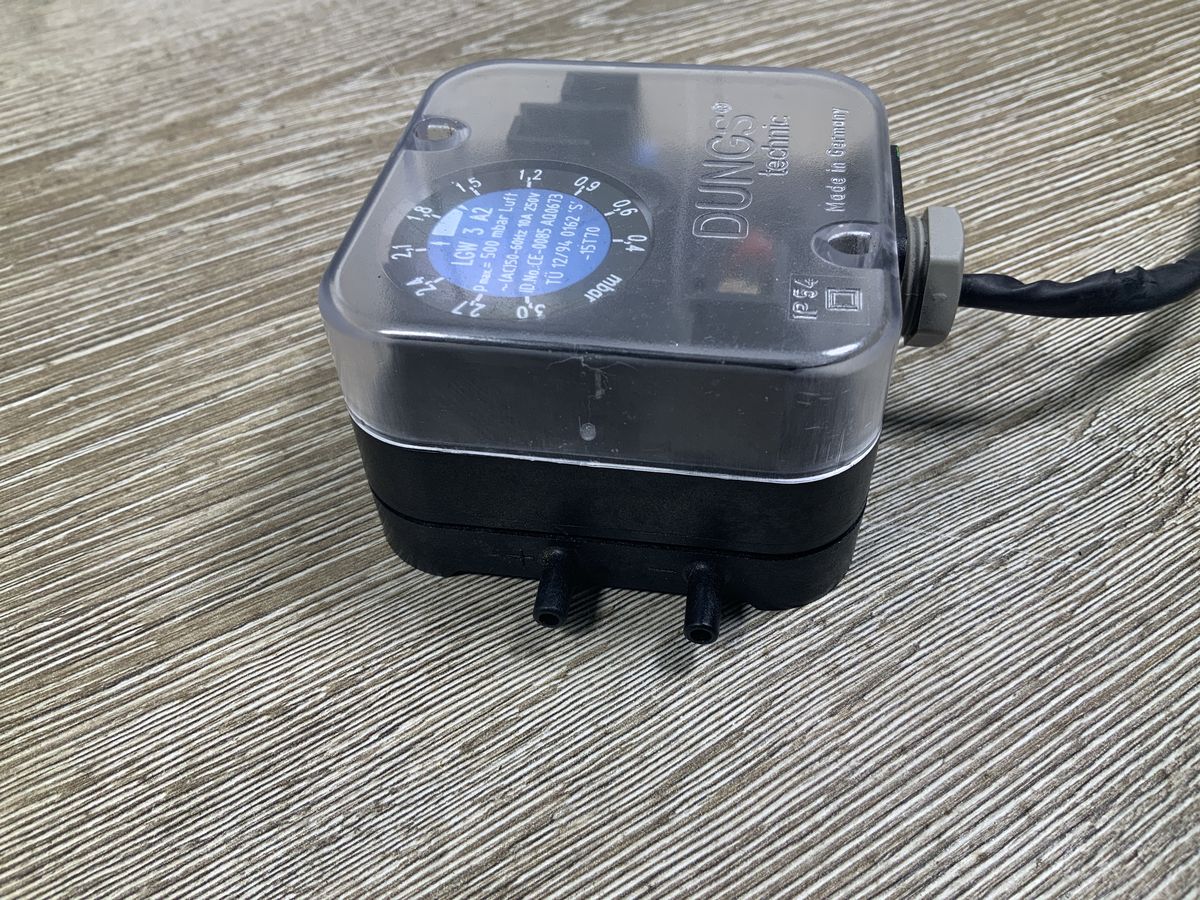

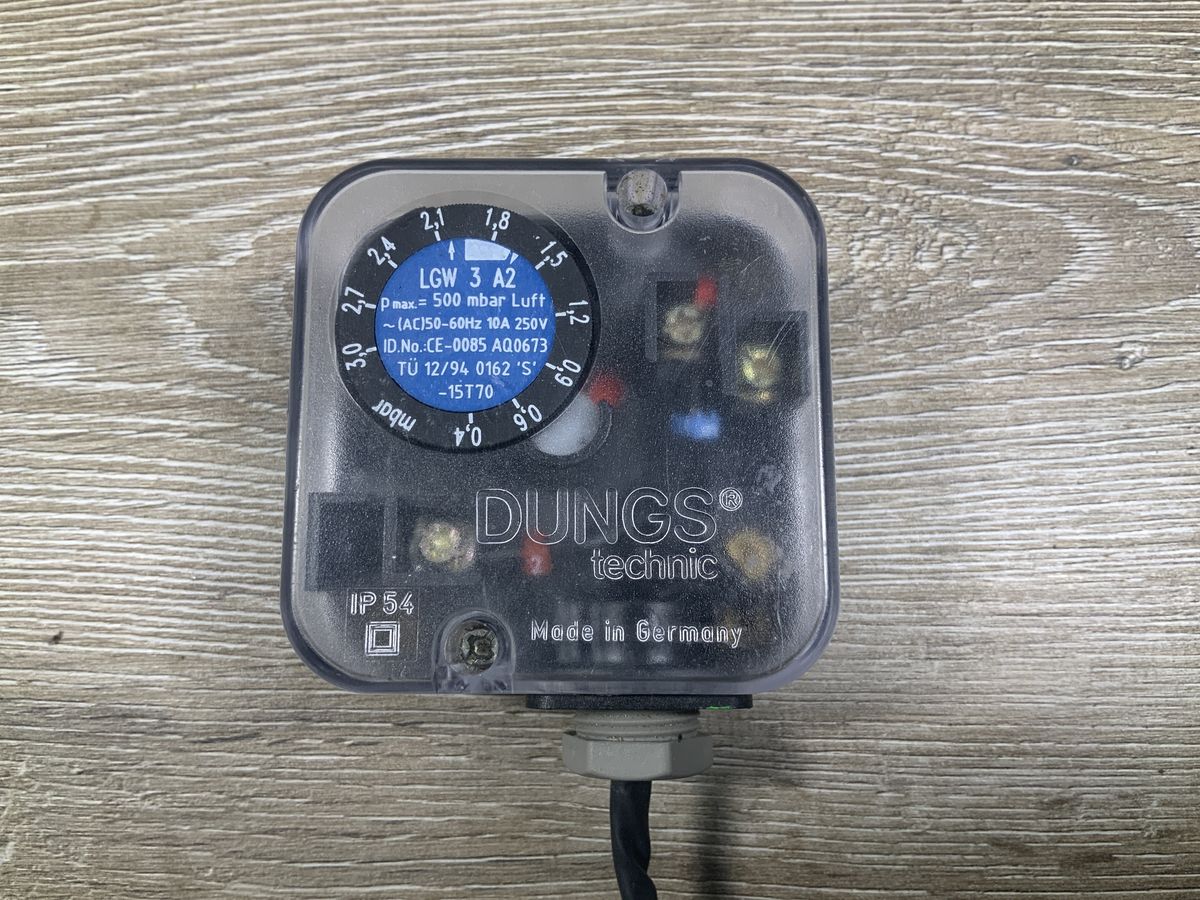

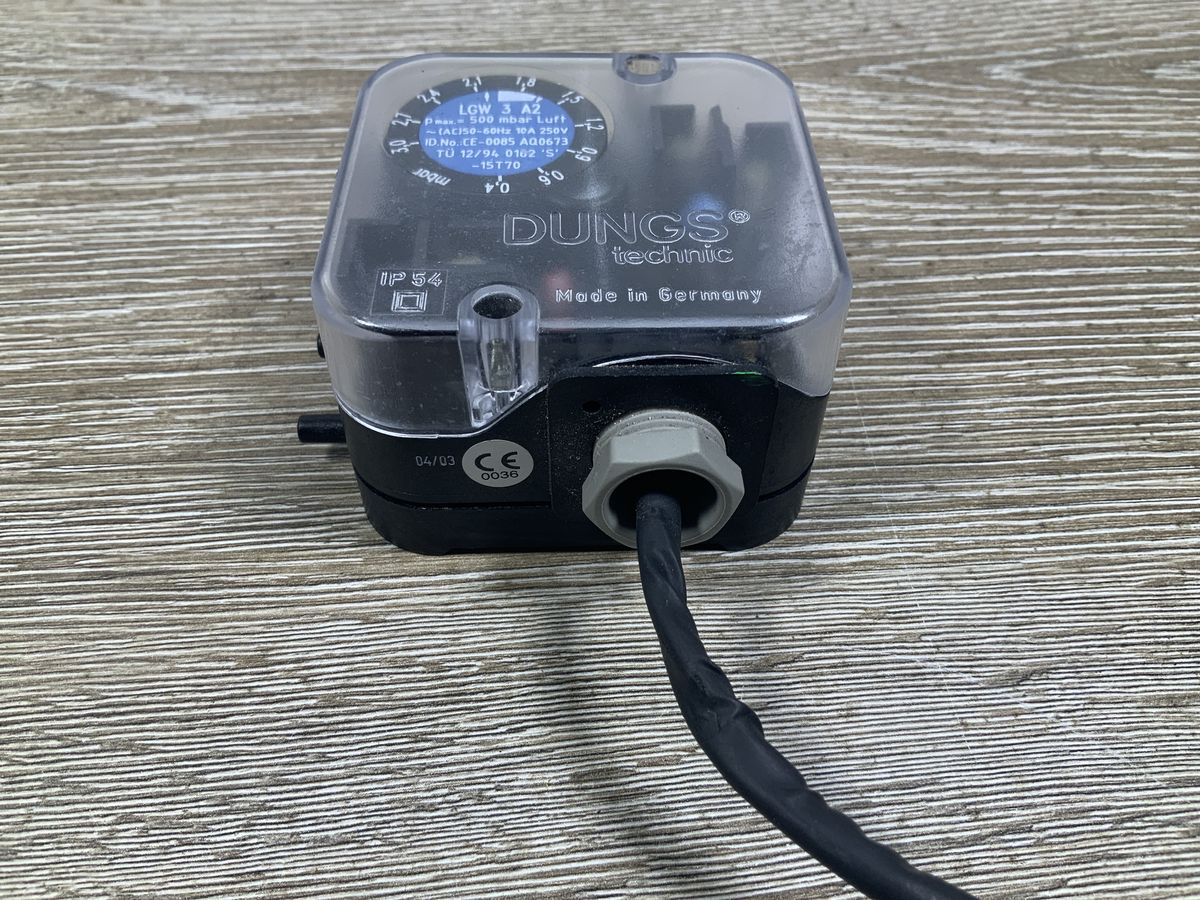

The Dungs LGW 3 A2 is an adjustable differential pressure switch designed for air and non-aggressive gas monitoring in combustion and HVAC systems. It features an adjustable dial scale from 0.4 to 3.0 mbar and a maximum operating pressure rating of 500 mbar. The unit is built into an IP54 rated housing with standard nozzle tube connections.

Specifications – LGW 3 A2

Parameter Specification
Pressure Range 0.4 - 3.0 mbar
Max. Pressure 500 mbar
Voltage / Current Rating 250 V AC, 10 A, 50-60 Hz
Protection Class IP 54
Temperature Range -15 °C to +70 °C (-15T70)
×
